Skate

Friction-grip attachment


The innovative dental attachment international implying an evolution of the milling technique.

Skate is a simple and economic attachment conceived to recover the retentive ability of parallel guidance surfaces and grooves.
Skate is a mechanical push able to immediately restore the friction area of its opposite surface, regaining the original retention of the milling.

The application of the attachments series Skate, mini-Skate, mini-Skate-Round and micro-Skate must be made on elements PRESET for their positioning,with LINGUAL MILLINGS (shoulder, surface and grooves) or TELESCOPIC MILLINGS or with MILLED BARS and with the side of the matrix, intended to friction with the patrix, realized as beloe indicated for each version.

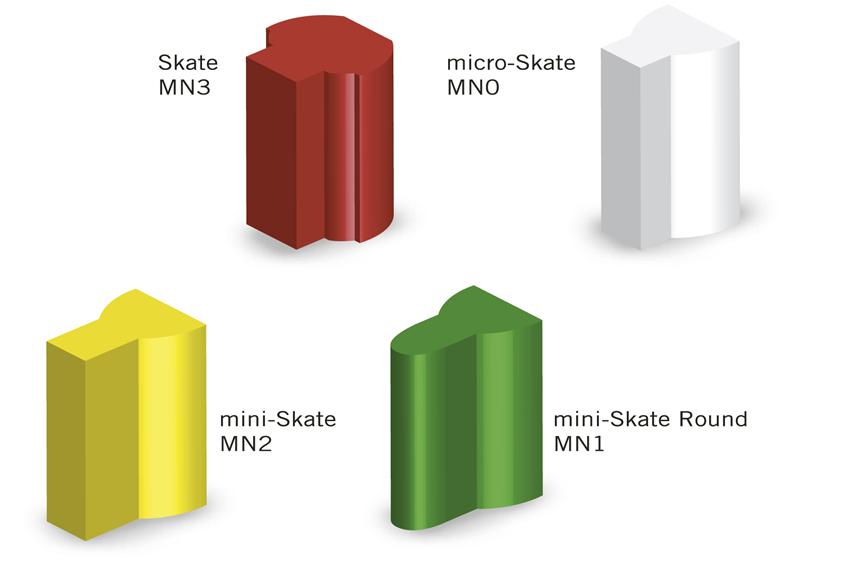

AVAILABLE VERSIONS


   SKATE: to be used with matrices aving parallel guidance surfaces of 4 mm height and 2 mm width

  mini-SKATE: to be used with matrices aving parallel guidance surfaces of 4 mm height and 1 mm width

  micro-SKATE: to be used with matrices aving parallel guidance surfaces of 4 mm height and 1 mm width

  mini-SKATE-Round: to be used with matrices aving guidance grooves  of  4 mm height, ø 1 mm diameter and 0,5 mm depth




BENEFITS


⇒ Double duration: restore of 50% friction area

⇒ White fabrication patrix

⇒ Four colour coded patrix for a consistent level of retention: white, green, yellow and red

⇒ Patrix easily changed

⇒ Patrix can be reduced up to 3 mm

⇒ Placed without any tool

Usage advices
Indications Fixation
► Lower and upper partial dentures
► Free-end and/or bounded restorations
► Unilateral and bilateral dentures
► Bars on implants

⇒ PATRIX: fitted in the removable partial denture and held in it











 Procedure operative per attacchi dentali SKATE
Combined prosthesis on abutment teeth

  1. Telescopic crown milled from wax
  2. Finishing of a telescopic crown in metal
  3. Positioning of Skate on the cap
  4. Waxing up
  5. Waxing up completed
  6. Removal of white component
  7. Waxing up of the framework connector
  8. Insertion of the framework in the cast connector
  9. Fitting of Skate into the framework
 Bar on implants

  1. Waxing up of a 0° bar on implants
  2. Application of a Skate on a bar cast and finished
  3. Fitting of Skate into the removable partial denture
