A-slide

slide attachments


A-slide attachments are aesthetic, serviceable, cost-friendly, patient-friendly and adaptable to all situations. They combine an easy insertion with an optimal retention and represent the design more used by manufacturers of dental attachments. The elastic matrices need a minimal and quick maintenance that can be made by the technician or also at chairside in a few seconds.

The most common dental attachment international always available in our stock.

BENEFITS

⇒ Frictional retention

⇒ Two colour coded matrices for two retentive strengths: standard (white) and high (yellow)

⇒ Patrix with built in paralleling mandrel

⇒ Patrix height can be reduced up to 3 mm vertical height

⇒ Elastic matrices easily replaced

INDICATIONS

♦ Kennedy's classes I, III, IV

♦ 0° bars

♦ 2° bars

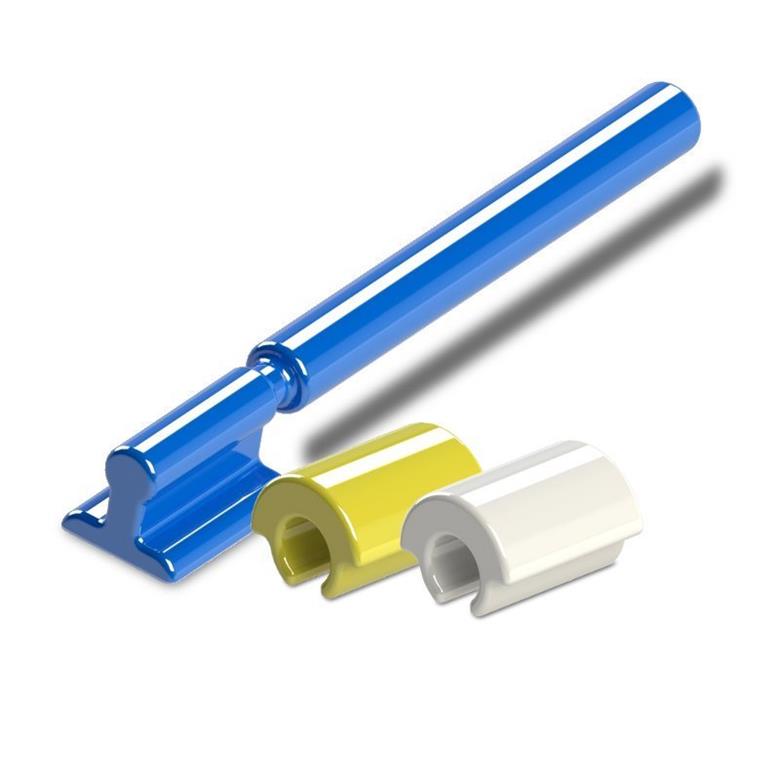

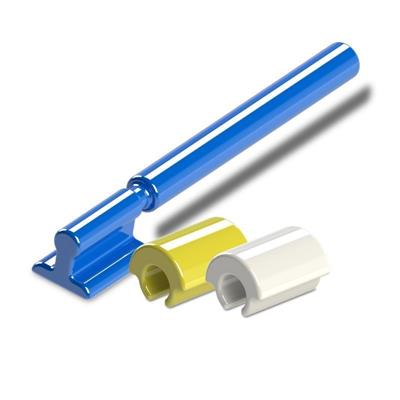

A-slide white matrix

standard friction



A-slide yellow matrix

high friction



A-slide male

calcinable plastic



Features
Matrix Patrix
• Two retention strenghts: standard (white)
   and high (yellow)
 • Plastic pattern patrix

• Paralleling mandrel as extension of the patrix that has to be
   removed after positioning












Usage advices
Indications Fixation
►Lower and upper partial dentures

►Free-end and/or bounded restorations

►Unilateral and bilateral dentures

⇒ MATRIX: fitted and retained in the removable
    partial denture

⇒ PATRIX: cast as part of crown pattern












Working Procedures for V-slide attachments

 Combined prosthesis

  1. Easy positioning of the patrix with its built in paralleling mandrel

  2. Patrix positioned and provided with a lingual milling

  3. Patrix cast as part of crown pattern

  4. Insertion of white patrix for passive fit proof

  Bar on implants

  1. Positioning of the patrix with a bar on implants

  2. Finishing of the bar with a milling machine





Prodotto Width (mm) Length (mm) Height (mm)
A-slide white matrix
A-slide yellow matrix
A-slide male
