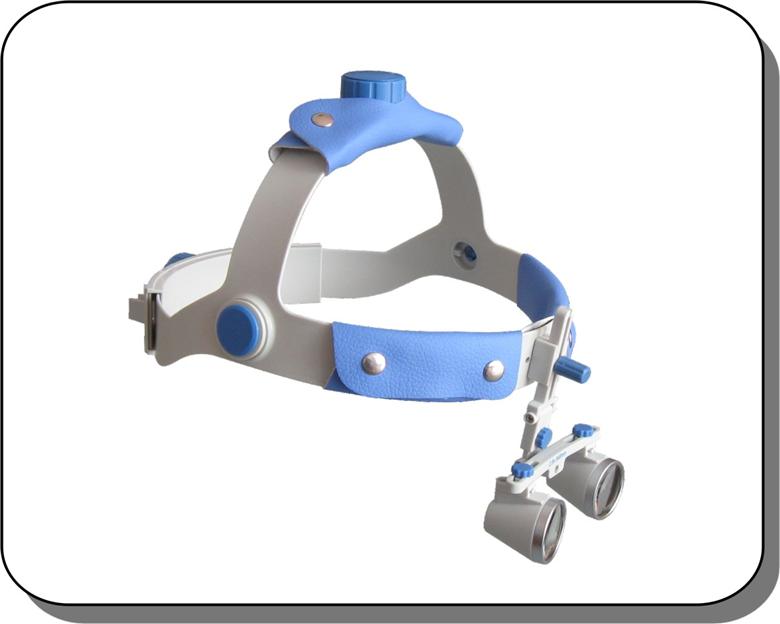

SLH Binocular Loupes

Flip-up Galilean binocular loupes

The SLH Binocular Loupes come with various magnification and field of view specification options:

  • 2.5x Magnification is the most popular model. It offers the widest field of view and longest depth of focus.

  • 3.0x is designed for dentists who need more magnification, giving you a good field of view and depth of focus.

  • 3.5x is the highest magnification available in Galilean Loupes, being suitable for specialist work within a smaller depth of view by giving you the ability to perform most dental procedures, such as cosmetic, crown and bridge, etc.

SLH Binocular Loupes Features:

  • Multi-coated, high grade glass lenses produce crisp, clear image.
  • With the very large field of view, the depth of focus is deep and the object can be seen stereoscopically with actual distance feeling.
  • Fatigue is minimized after prolonged use.
  • Smart design, convenient for mobile diagnosis.
  • Vertical Distance: 6 mm up and down displacement.
  • Adjustable Viewing Angle: 0 to ~40°.
  • Adjustable Pupil Distance: 45 - 80 mm to suit all kinds of face
  • Adapt to apply a coaxial led headlight

SLH Binocular Loupes Configurations:

Magnification Working Distance Field of View Weight without Frame
2.5x 340 mm 80 mm 71.0 g
2.5x 420 mm 100 mm 71.0 g
3.0x 340 mm 70 mm 71.5 g
3.0x 420 mm 84 mm 71.5 g
3.5x 340 mm 60 mm 72.0 g
3.5x 420 mm 72 mm 72.0 g
